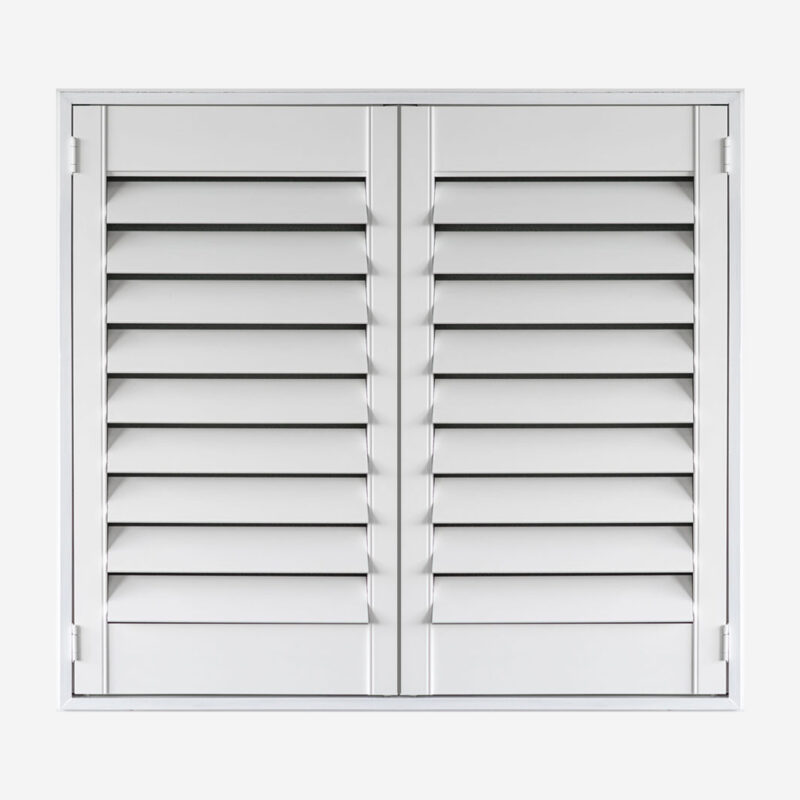

DIY PVC Plantation Shutter – Shutterwise Easykit – Two Panels No Mid Rail
DIY PVC Plantation Shutter – Shutterwise Easykit – Single Panel

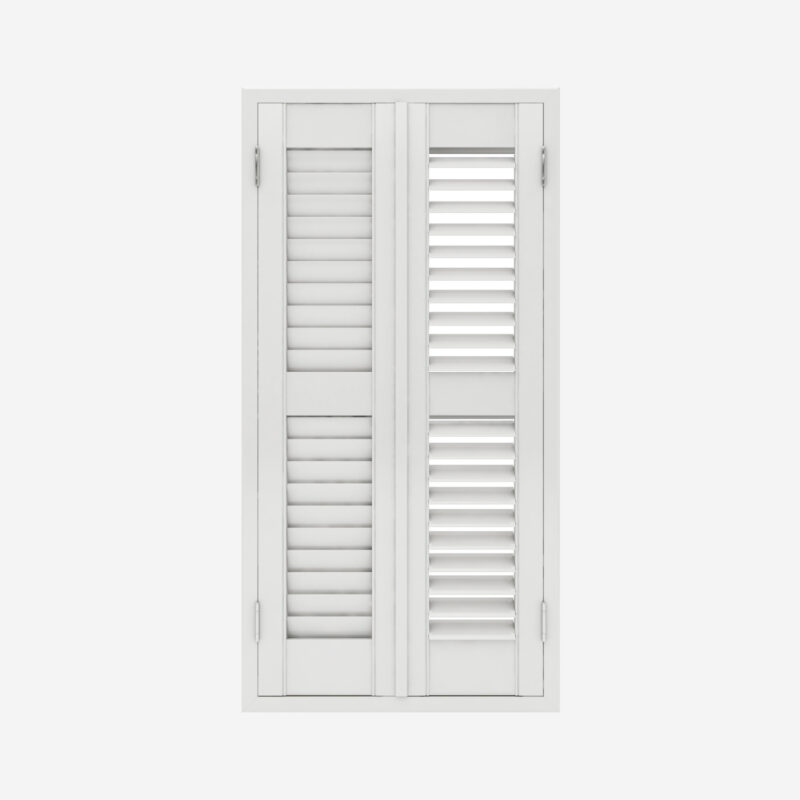

DIY PVC Plantation Shutter – Shutterwise Easykit – Two Panels with D Mold
DIY PVC Plantation Shutter – Shutterwise Easykit – Single Panel No Frame Assembled
poster image

DIY Timber Plantation Shutters – WoodEco Assembled

DIY PVC Plantation Shutters - PloyEco Assembled DIY PVC Plantation Shutters – PolyEco Assembled
0 out of 5
( There are no reviews yet. )

$299.00 /m2

DIY Timber Plantation Shutters – WoodEco Assembled

  • Resistant to warping, cracking and water
  • Easy to clean
  • Environment friendly water-based paints, Australian SGS VOC free tested.
  • Outstanding Insulation
  • Low maintenance
  • Made to fit any size or shape
  • Most popular 89 mm blades available
  • Delivery in 8-10 weeks from order

10 YEARS

Structural Warranty

3 YEARS

Paint Warranty

8 – 10 WEEKS

Delivery Timeframe

INTERNATIONAL

Imported Product

  • Shutter Specification

    Shutter Measuring Specifications

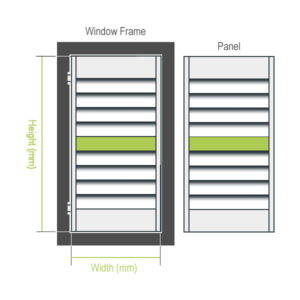

    Shutter Width and Height Specification
    Shutter Width and Height Specification

    Shutter Specification

    Product Painting Colors Process Application
    Timber Water-based White Finger Joint Interior
    PVC Water-based White Extruded In/Exterior
    Shutter Specification Width
    Shutter Width

    Panel Width Limitation

    Materials Min width Max Width
    Timber 250mm 950mm
    PVC 250mm 900mm
    Shutter Specification Height
    Shutter Height

    Panel Height Limitation

    Product
    Min Height Max Height  Optional Mid rail required
    Timber 400mm 2800mm <1800 1801-2400mm
    PVC 400mm 2500mm <1600 1601-2100mm

    Panel width and height over maximum limitation or without mid rails, buyers are defaulted to give up warranty.

    Shutterwise: Warranty Policy
SKU: IMP-S-TMB-WE Categories: , , , Tags: , , , ,

Enter Measurements

mm
mm
Total Area
m2
Price
Today's Price
Total Area (sq m)

Points and Rewords

Purchase this product now and collect reword points!

Buy and Collect Points Read more?

  • Measurement Type

    How will your shutter be mounted to the window?

    Guide

    • How to Measure Window?

      How to measure?

      Getting a precise and accurate measurement is the first step to a perfect shutter.

      1. Always measure with a new metal tape measure
      2. Always measure to the closest mm
      3. Measure all windows, even though they appear to be identical

      *There are three types of frames, L Frame recessed (in) fit, Z Frame recessed (in) fit and L Frame (Out) face fit.

      Determine the squareness of window

      • Measure diagonally from corner to corner.
      • Should the difference between the two diagonals be greater than 6mm, Fact fit L or recessed Z Frame fits is highly recommended.

    Measuring Recess Fit

    Measuring Recessed (in) L and Z Frame fit.

    • Width – take three measurements at the top, middle and bottom of the window opening.
    • Height – take three measurements at the left, center, and right of the window opening
    • For recess fit provides the smallest width and height measurement.



    BLADES – CLEARVIEW TILT ROD
    Size: 89 mm
    Minimum Depth: 50 mm

    * For some circumstances, Window depth can be less than 50mm by using a mid-rail at the position of hand bar. If there is a winder at the bottom of window blocked the bottom frame, 3 sides frames (no bottom frame) is the option.

    Guide

    • How to Measure Window?

      How to measure?

      Getting a precise and accurate measurement is the first step to a perfect shutter.

      1. Always measure with a new metal tape measure
      2. Always measure to the closest mm
      3. Measure all windows, even though they appear to be identical

      *There are three types of frames, L Frame recessed (in) fit, Z Frame recessed (in) fit and L Frame (Out) face fit.

      Determine the squareness of window

      • Measure diagonally from corner to corner.
      • Should the difference between the two diagonals be greater than 6mm, Fact fit L or recessed Z Frame fits is highly recommended.

    Measuring Face Fit

    Measuring L frame Face Fit (out).

    • Width – take three measurements from the edge of the architrave to the edge of the architrave at the top, middle and bottom on the window frame.
    • Height – take three measurements from the top of the architrave to the bottom of the architrave at the left, center, and right of the window opening.
    • For Face fit (in) L frame, provide the largest width and height measurement.



    *You need at least 25mm of flat surface to mount your shutter frame. If the architrave is over 70mm, then 65mm ML (medium L) frames are needed. otherwise SL (standard L) frames work better.

    Choose Color

    Blade Type

    Frame Type

    Choose your Recess Fit mount Frame Type.

    Frame Type

    Choose your Face Fit mount Frame Type.

    Frame Type

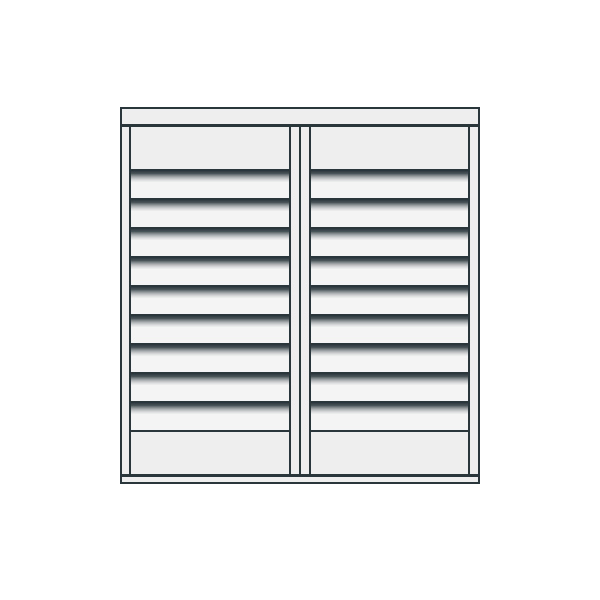

    Choose your U-Channel mount Frame Type.

    How many panels does your custom layout have?

    How many panels does your custom layout have if it's more than 10?

    Frame Style

    Choose your Recess mount Frame Style. We offer (LRTB or LRT frame styles) for Recess Fit - L and Z frame types.

    Choose your Face Fit mount Frame Style. We offer (LRTB or LRT frame styles) for Face Fit - L frame type.

    Recces Mount window with (Hangstrip) has no frame style options.

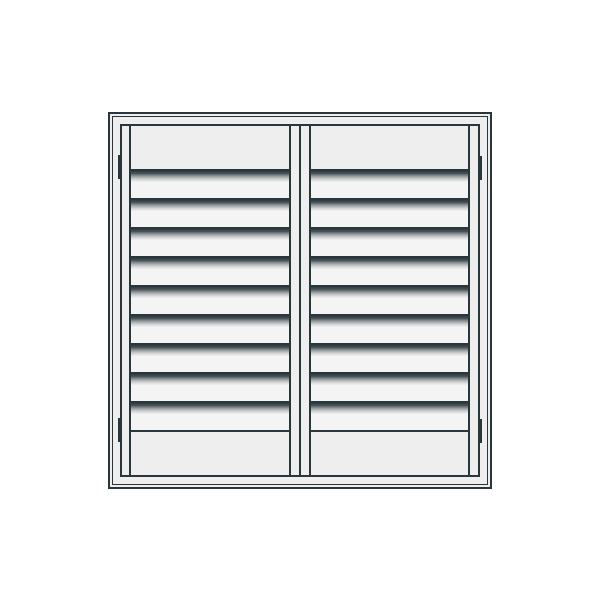

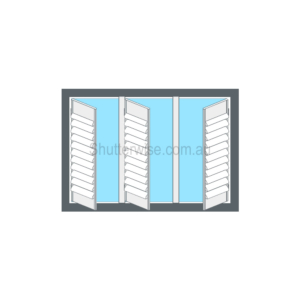

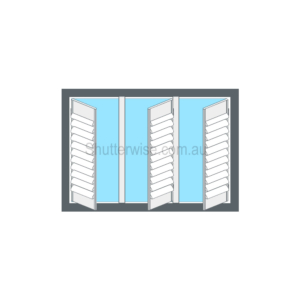

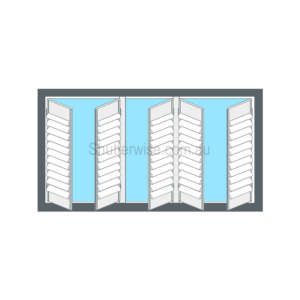

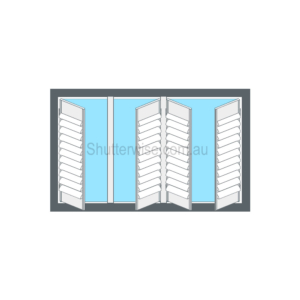

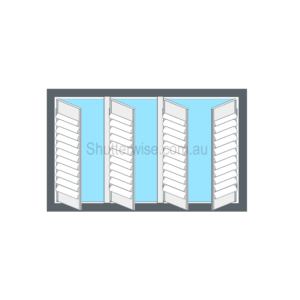

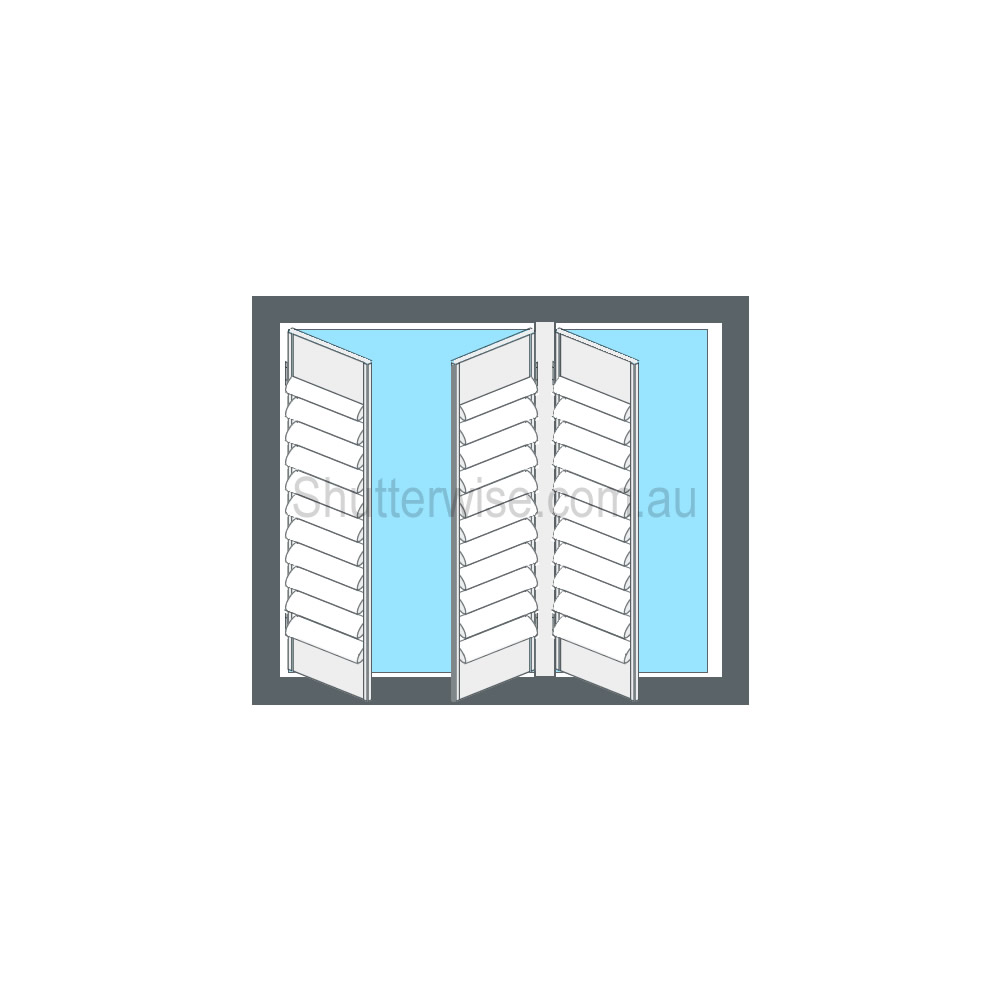

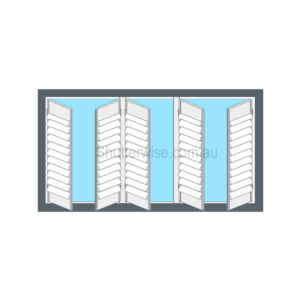

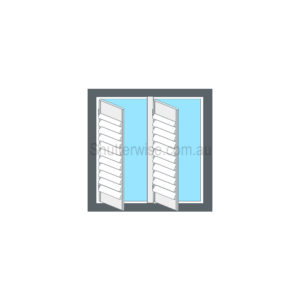

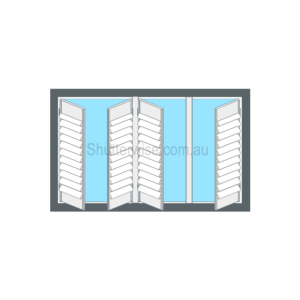

    Panel Layout

    Select from our predefined panel layout configuration or enter your custom setup preference.

    How many panels does your custom layout have?

    How many panels does your custom layout have if it's more than 10?

    Please use only letters and spaces.  Panels: Left (L) or Right (R) or Panel (D) D-Mould and T-Post (T).
    Example: [←]|[←]|[→]   (L): Left Panel  -  (T): T-Post - (L): Left Panel - (D): D-Mould on (R): Right Panel
    Code: LTL-DR

    T-Post Single Configuration

    T-Post Configuration

    Select your T-Post layout configuration for the Recess Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Recess Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Face Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Face Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Recess Fit window with (Hangstrip Style).

    Select your T-Post layout configuration for the Recess Fit window with (Direct Mount Style).

    Enter you T-Post One (1) measurement in mm only.

    Guide

    • How to Measure Window?

      How to measure?

      Getting a precise and accurate measurement is the first step to a perfect shutter.

      1. Always measure with a new metal tape measure
      2. Always measure to the closest mm
      3. Measure all windows, even though they appear to be identical

      *There are three types of frames, L Frame recessed (in) fit, Z Frame recessed (in) fit and L Frame (Out) face fit.

      Determine the squareness of window

      • Measure diagonally from corner to corner.
      • Should the difference between the two diagonals be greater than 6mm, Fact fit L or recessed Z Frame fits is highly recommended.

    Measuring T-Post Position?

    Even

    Uneven

    How to measure your T-posts position?

    • The maximum individual Panel Width is 850mm. For larger windows T posts can be used with any frame type where the size of the window requires three, four or six panels etc. They are used to divide windows vertically to match window design and cover large spaces.
    • When ordering your shutters, you can choose Standard Panel widths – all panels are made equal sizes or ‘Custom’.
    • Below are measuring instructions if you choose custom sizes.


    Recessed (In) fit – L Frame & Z Frame

    T-Post 1 = Inside edge of window frame to centre of first T-Post
    T-Post 2 = Inside edge of window frame to centre of second T-Post

    Face (Out) fit – L Frame

    T-Post 1 = Outside edge of architrave to centre of first T-Post
    T-Post 2 = Outside edge of architrave to centre of second T-Post

    Number of sides of the frame

    Shutters with frames have 3 or 4 sides, which will be noted in order sheet, All of frames can be made in three or four sided frames. Most common is a four-sided frame. LRBT stands for Left, Right, Bottom and Top frames.

    T-Post Multi Configuration

    T-Post Configuration

    Select your T-Post layout configurations for the Recess Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Recess Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Face Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Face Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Recess Fit window with (Hangstrip Style).

    Select your T-Post layout configuration for the Recess Fit window with (Direct Mount Style).

    Enter you T-Post One (1) measurement in mm only.

    Enter you T-Post Two (2) measurement in mm only.

    Guide

    • How to Measure Window?

      How to measure?

      Getting a precise and accurate measurement is the first step to a perfect shutter.

      1. Always measure with a new metal tape measure
      2. Always measure to the closest mm
      3. Measure all windows, even though they appear to be identical

      *There are three types of frames, L Frame recessed (in) fit, Z Frame recessed (in) fit and L Frame (Out) face fit.

      Determine the squareness of window

      • Measure diagonally from corner to corner.
      • Should the difference between the two diagonals be greater than 6mm, Fact fit L or recessed Z Frame fits is highly recommended.

    Measuring Multi - T-Post Positions?

    Even Multiple

    Uneven Multiple

    How to measure your T-posts position?

    • The maximum individual Panel Width is 850mm. For larger windows T posts can be used with any frame type where the size of the window requires three, four or six panels etc. They are used to divide windows vertically to match window design and cover large spaces.
    • When ordering your shutters, you can choose Standard Panel widths – all panels are made equal sizes or ‘Custom’.
    • Below are measuring instructions if you choose custom sizes.


    Recessed (In) fit – L Frame & Z Frame

    T-Post 1 = Inside edge of window frame to centre of first T-Post
    T-Post 2 = Inside edge of window frame to centre of second T-Post

    Face (Out) fit – L Frame

    T-Post 1 = Outside edge of architrave to centre of first T-Post
    T-Post 2 = Outside edge of architrave to centre of second T-Post

    Number of sides of the frame

    Shutters with frames have 3 or 4 sides, which will be noted in order sheet, All of frames can be made in three or four sided frames. Most common is a four-sided frame. LRBT stands for Left, Right, Bottom and Top frames.

    Mid-Rail Configuration

    Mid-Rail Configuration

    Please confirm if your entered height is over (1600 mm)?

    Select your Mid Rail/Divider configuration for Recess Fit with four side (LRTB) frame style.

    Select your Mid Rail/Divider configuration for Recess Fit with three side (LRT) frame style.

    Select your Mid Rail/Divider configuration for Recess Fit with (Hangstrip). *Hangstrip has no frames.

    Select your Mid Rail/Divider configuration for Recess Fit with (Direct Mount).
    * Direct mount has no frame and it mounts directly to the windows own frame.

    Select your Mid Rail/Divider configuration for Face Fit with four side (LRTB) frame style.

    Select your Mid Rail/Divider configuration for Face Fit with three side (LRT) frame style.

    Select your Mid Rail/Divider configuration for U Channel. *U Channel has no frame.

    Enter you Mid-Rail One (1) measurement in mm only.

    Enter you Mid-Rail Two (2) measurement in mm only.

    Important
    Important
    Important
    Important
    Important
    Important
    Important

    Guide

    • How to Measure Window?

      How to measure?

      Getting a precise and accurate measurement is the first step to a perfect shutter.

      1. Always measure with a new metal tape measure
      2. Always measure to the closest mm
      3. Measure all windows, even though they appear to be identical

      *There are three types of frames, L Frame recessed (in) fit, Z Frame recessed (in) fit and L Frame (Out) face fit.

      Determine the squareness of window

      • Measure diagonally from corner to corner.
      • Should the difference between the two diagonals be greater than 6mm, Fact fit L or recessed Z Frame fits is highly recommended.

    Measuring Mid-Rail Position?

    Even

    Uneven

    How To Measure Your Mid Rail Position

    • Mid rails provide strength to your shutters and allow you to operate the top blades independently from the bottom blades.
    • Customers are agreed to give up warranty claims if panels over 1800mm without mid rails.
    • The most common placement for a mid-rail is in the exact center of the panel.
    • It is also common to place the mid rail at a natural break.
    • For recessed fit L or Z Frame, measure from the bottom of the inside of your window frame to the center point of the desired location of the mid rail.
      For face fit L Frame measure from the bottom of the architrave to the center point of the desired location of the mid rail.

Wishlist

Description

DIY Timber Plantation Shutters – WoodEco Assembled are PVC shutters that panels have assembled, all you need to do is joint the frames and attached the panels to the frames.

DIY Timber Plantation Shutters – WoodEco Assembled are a classically elegant yet practical window covering. As well as providing an excellent way to control light and airflow in your home, good insulation, they are low maintenance, allergy-free and easy to use.

Why Choose DIY Plantation Shutters for Your Home or Office?

ShutterWise is an Australian company that offers locally-made plantation shutters with fast delivery and an extensive warranty.  We pride ourselves on excellent after-sale support and offer the best prices on high-quality PVC or Timber plantation shutters. Our products are available as flat-packed PVC plantation shutter kits or as fully assembled shutters, delivered nationwide within 5-10 working days. Our commitment is to quality, eco-friendliness, and affordability, ShutterWise is the perfect choice for anyone looking for plantation shutters.

Plantation shutters come in a wide array of styles and can be customized to seamlessly fit into your home décor. No matter their size and shape, these treatments can be designed to offer complete or partial coverage to all window types, including arched, oversized and triangular windows. They’re also available in many colours to achieve your desired look.

Modern plantation shutters are made of hard-wearing materials like PVC, aluminum and wood. As a result, they don’t easily crack or peel and remain in good shape even with minimal maintenance. The best way to clean plantation shutters is with the brush attachment of a vacuum cleaner and regular wiping with a soft cloth. Unlike curtains and blinds, you don’t have to worry about machine washing them or damaging delicate materials when cleaning shutters.

Plantation shutters are made using durable materials. Unlike curtains and drapes, exposure to the sun, dust and changing temperatures don’t cause wear and tear to shutters. They can stand up to high humidity and effectively resist fading and cracking because they’re made with synthetic materials.

Plantation shutters are a great solution for insulating your home. They help keep your home cool when temperatures rise and warm during the colder months. This is because they are installed in such a way that they seal right up against the window frame, thus preventing inside air from escaping and outside air from entering. This improves energy efficiency and lowers utility bills.

Apart from privacy and security, the extra buffer of shutters between your windows and the outside is a great way to reduce outdoor noise. Cars honking or the noise from a nearby construction site can be reduced with the sound insulation properties of plantation shutters. Shutters help lower noise levels because of their noise-absorbing materials, tight-fitting frames and thick slats.

Unlike draperies which attract allergens, including pollens, dust and pet dander, plantation shutters have accessible, wipe-clean surfaces. If someone in your home has allergies, shutters are ideal.
Plantation shutters are a dynamic window treatment option with several benefits. They’re not only an attractive addition to your home but help save money on your utility bill while enhancing the comfort of your living space. If you haven’t considered buying them for your windows, give them a shot.

As mentioned, shutters seal perfectly with your window frame. Raising or lowering the slats affords you complete privacy so no one can look in. That said, windows are the easiest way to break into a house and shutters act as an additional barrier.

These window coverings are permanent attachments to your home. Unlike curtains, draperies, and blinds, they remain with the home even when it is sold. That’s why shutters are considered a selling point as they increase its value, allowing you to recoup their cost.

No matter the latest window covering trend, shutters are timeless. They complement most interior design styles, from rustic and minimalist to contemporary and traditional, and make windows look sophisticated and organized.

Plantation shutters fit snugly inside window frames, leaving no space for light to get inside. The slats you can open and close to allow in light. That means you don’t have to worry about the glare on your TV screen when the louvres are down, even when the sun is shining.

Window coverings with low-hanging cords can be a choking hazard for both children and pets. With plantation shutters, you have peace of mind knowing your little ones and furry friends are safe because these window treatments don’t have cords.

What is not included:
  • Window check measure service.
  • Shutter panels assembly service.
  • Shutter panels installation service.
  • In person assembly, installation, support or assistance of any kind.
  • Tools required for assembly and installation or any other materials of any kind.
Optional service/s:
  • On-site window check measure service offered to our local customers via an appointment only.
  • Shutter panels assembly service offered to all customers at extra cost.
  • Shutter panels installation service offered to our local customers only, at extra cost.
Shutter Width and Height Specification
Shutter Width and Height Specification

Shutter Specification

Product Painting Colors Process Application
Timber Water-based White Finger Joint Interior
PVC Water-based White Extruded In/Exterior

Panel Width Limitation

Materials Min width Max Width
Timber 300mm 950mm
PVC 300mm 900mm
Shutter Specification Width
Shutter Width

Panel Height Limitation

Product
Min Height Max Height  Optional Mid rail required
Timber 400mm 2800mm <1800 1801-2400mm
PVC 400mm 2500mm <1600 1601-2100mm
Shutter Specification Height
Shutter Height

Panel width and height over maximum limitation or without mid rails, buyers are defaulted to give up warranty.

Shutterwise: Warranty Policy

Additional information

Product

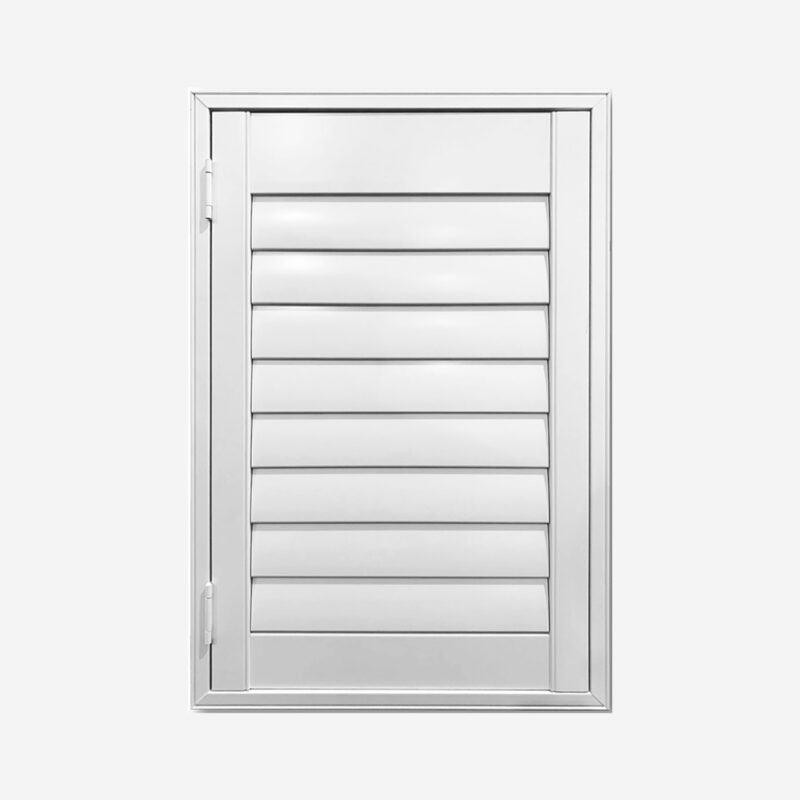

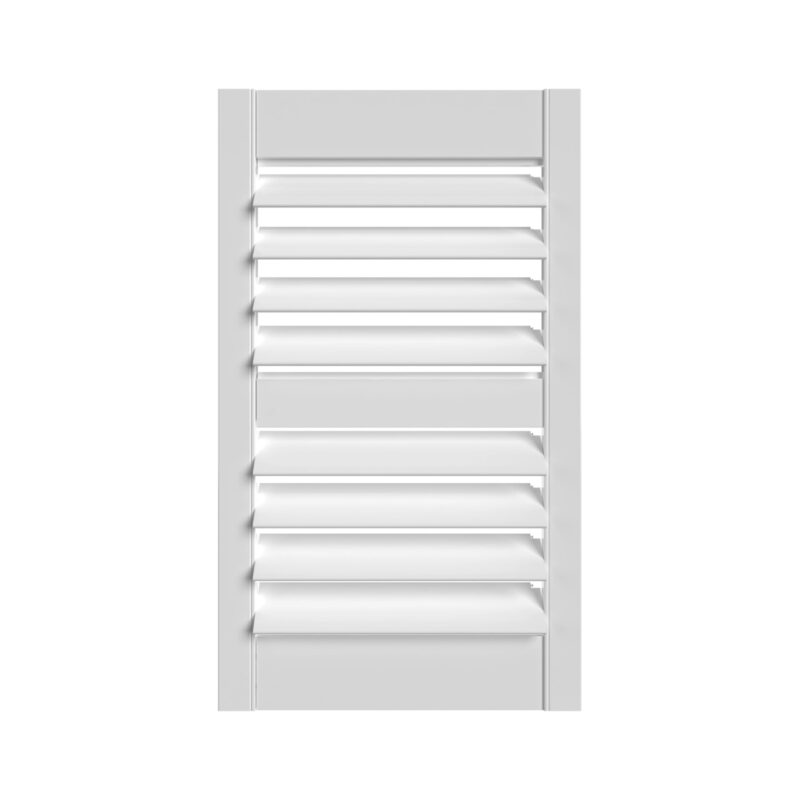

Timber Plantation Shutter
Manufacturer

Shutter Wise
Brand

PVC PloyEco
Material

Timber
Color

Snow White
Louver Options

64 mm, 89 mm
Max Panel Width

950 mm
Mid-Rail Request

1600 mm
Origin

Imported Shutter
Delivery

8-10 Weeks Delivery
Warranty

3 Years Paint Warranty, 5 Years Structial Warranty

Reviews

There are no reviews yet.

Be the first to review “DIY Timber Plantation Shutters – WoodEco Assembled”

Product Enquiry
